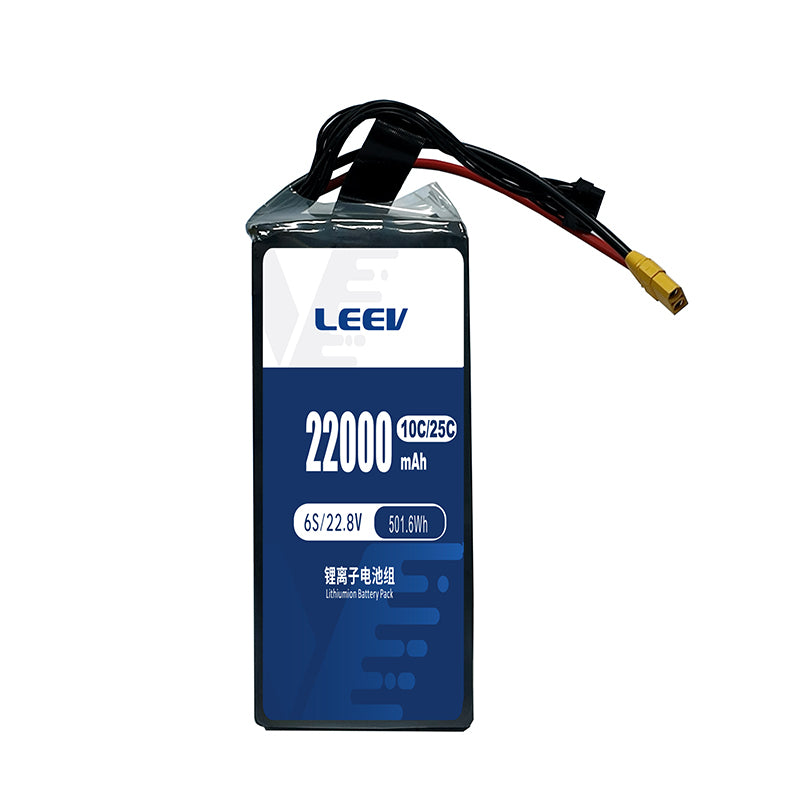

Roll over or click image to zoom in
High C-rate
High safety
Lightweight design
Customized Solutions
| Serial No. | Item | Parameters | Remarks |
|---|---|---|---|
| 1 | Nominal Capacity | 22Ah | |
| 2 | Nominal Voltage | 22.8V | |
| 3 | Electric Quantity | 501.6Wh | |
| 4 | Charge Cut-off Voltage | 26.1V | |
| 5 | Discharge Cut-off Voltage | 18V | |
| 6 | Standard Charging Current | 11A | |
| 7 | Maximum Charging Current | 44A | |
| 8 | Continuous Discharging Current | 220A | Continuous 10C |
| 9 | Maximum Pulse Discharging Current | 550A@3s | Instant 25C |
| 10 | Charging Operating Temperature | 0~40℃ | |
| 11 | Discharging Operating Temperature | -20~55℃ | |
| 12 | Charging Interface | JST XH2.54mm 7pin | |
| 13 | Discharging Interface | XT90-F | |
| 14 | Dimensions | 200*90*70mm | Height*Width*Thickness |
| 15 | Weight | 2.6±0.1Kg | |
| Other Capacities: 10Ah/12Ah/16Ah/22Ah/28Ah/30Ah, etc. | |||
